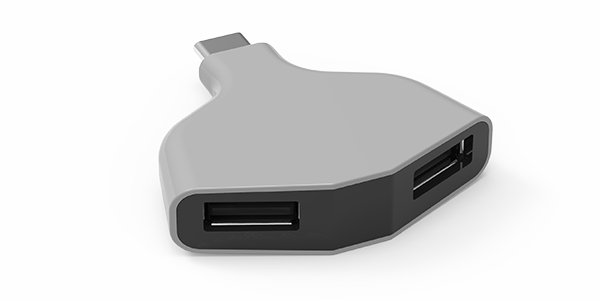

Model: CU21
♦ USB Upstream Type C Interface
♦ Compliant with USB 2.0 specifications
♦ Bus power mode, not need external power supply
♦ Supports both full-duplex and half-duplex operations
♦ Supports High-Speed (480MHz) and Full-Speed (12MHz) modes
♦ I/O:2 x USB 2.0 downstream port

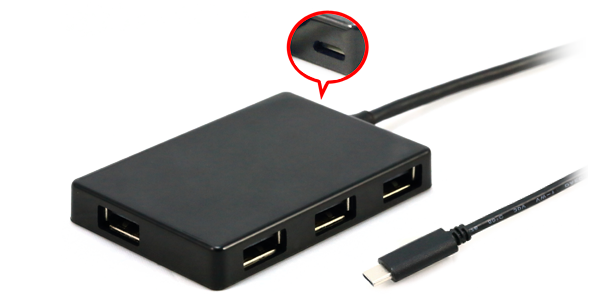

Model: CU22 V1.0
♦ USB Upstream Type C Interface
♦ Compliant with USB 2.0 specifications
♦ Automatic switching bus power or self power mode.
♦ Supports both full-duplex and half-duplex operations
♦ Supports High-Speed (480MHz) and Full-Speed (12MHz) mode.
♦ Supports four USB 2.0 downstream port.
♦ I/O:4 x USB 2.0 downstream port, 1 x Micro B receptacle for provide power

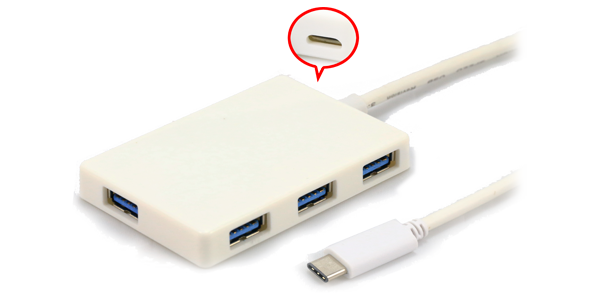

Model: CU22 V2.0
♦ USB Upstream Type C Interface
♦ Compliant with USB 3.1 Gen.1 / USB 2.0 specifications
♦ Automatic switching bus power or self power mode.
♦ Supports both full-duplex and half-duplex operations
♦ Supports Super-Speed (5GHz) & High-Speed (480MHz) & Full-Speed (12MHz) mode.
♦ Supports four USB 3.1 Gen.1 downstream port.
♦ I/O:4 x USB 3.1 Gen.1 downstream port, 1 x Micro B receptacle for provide power

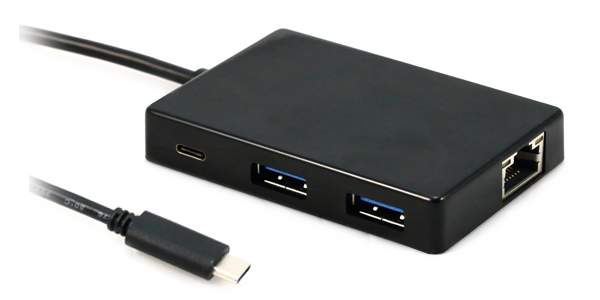

Model: CU91
♦ USB Upstream Type C Interface
♦ Compliant with USB 3.1 Gen.1 / USB 2.0 specifications
♦ Supports Fast Charge - Power Selivery 2.0 specifications. ( up to 60W)
♦ Supports both full-duplex and half-duplex operations
♦ Supports Super-Speed (5GHz) & High-Speed (480MHz) & Full-Speed (12MHz) mode.
♦ Compliant with IEEE 802.3 (10Base-T) and 802.3u (100Base-TX) standards
♦ LEDs Plug & Play installation
♦ I/O:2 x USB 3.1 Gen.1 downstream port, 1 x Type C receptacle for fast charge, 1 x 10/100Mbps RJ-45

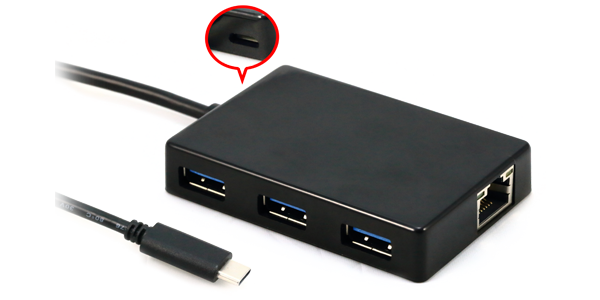

Model: CU92
♦ USB Upstream Type C Interface
♦ Compliant with USB 3.1 Gen.1 / USB 2.0 specifications
♦ Automatic switching bus power or self power mode.
♦ Supports both full-duplex and half-duplex operations
♦ Supports Super-Speed (5GHz) & High-Speed (480MHz) & Full-Speed (12MHz) mode.
♦ Compliant with IEEE 802.3 (10Base-T) and 802.3u (100Base-TX) standards
♦ LEDs Plug & Play installation
♦ I/O:3 x USB 3.1 Gen.1 downstream port, 1 x Micro B receptacle for provide power, 1 x 10/100Mbps RJ-45
